FS973I - AUTO EVACUATION RESCUE KIT, AUTO DESCEND

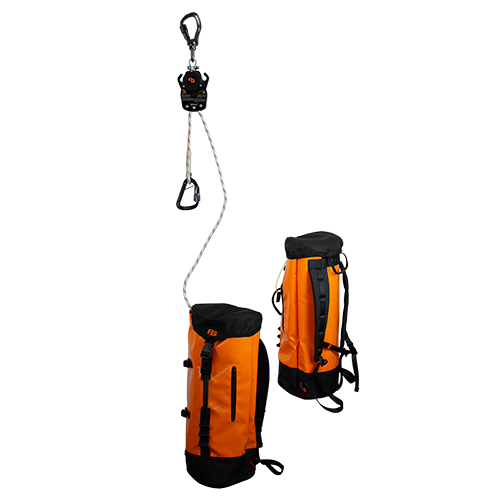

The FS973I is a rescue kit designed for self-rescue operations and emergency evacuations, offering a highly efficient and safe solution. Equipped with a controlled descent device, the system ensures that the descent speed is kept constant through an integrated centrifugal brake, providing a smooth and safe movement. The innovation of the diversion point in the device allows the speed to be adjusted according to the needs of the operation, increasing flexibility and control during the rescue.

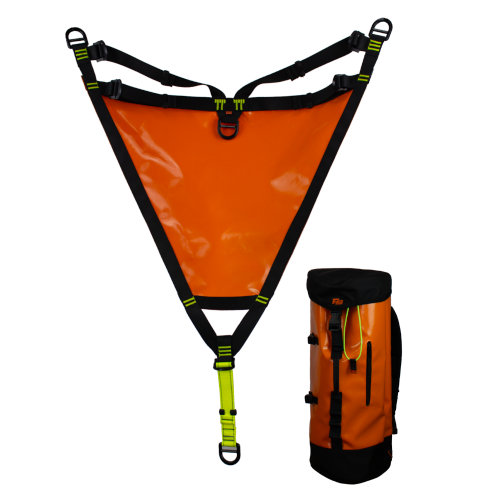

The FS34107I Evacuation Triangle was developed with an ergonomic design that ensures greater comfort for the evacuee. Its seat is designed to facilitate the positioning of the user, providing more comfort compared to traditional models. The FS34107I is made of high-strength TPU canvas, a material known for its durability, resistance to adverse conditions such as UV exposure, oil, and extreme temperatures, preventing unwanted odors. The shoulder straps and the ergonomic structure keep the evacuee in a vertical position comfortably and stably, allowing for better control during the rescue. The closure of the triangle is made through three metal D-rings, ensuring a secure and firm fit.

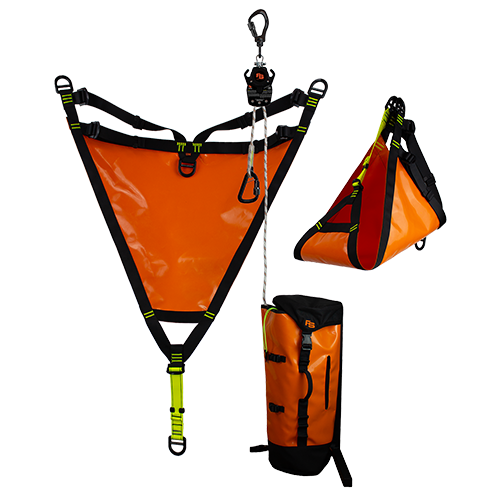

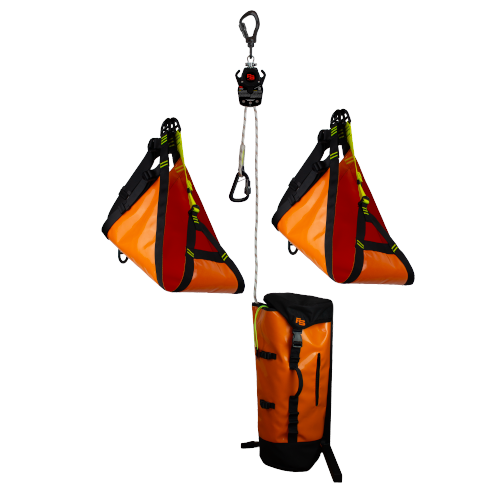

The kit includes two evacuation triangles and a robust carrying bag, making it easier to access the anchorage point and perform quick interventions. Compact and practical, the FS973I is ideal for high-risk situations, ensuring reliability in emergency operations.
WIND TURBINES
RESCUE
CONFINED SPACES
LIFESPAN | 10 Years |
|
|
MAXIMUM LOAD | CE - 200 Kg ANSI - 440 lbs |
|
|
INSPECTION | Yearly |
|
|
TRACEABILITY | S/N QR Code |
|
|
STANDARDS | CE - EN341:2011 ANSI - Z259.4-2013 |
|
|
INTRASTAT | 63079098 |
|
METAL PARTS | ALUMINUM AND STEEL ALLOY |
|
|
OTHER COMPONENTS MATERIAL | POLYAMIDE (PA) AND SILICONE |
|
|
WEBBING TYPE | POLYESTER (PES) |
|
|
ROPE TYPE | KERNMANTLE ROPE Ø 9.5 MM |
|
|
DEVICE | LOW MAINTENANCE, RUGGED DESCENT DEVICE WITH BALL BEARING SWIVEL |
|
|
CONNECTORS | 01 ALUMINUM HOOK WITH TRIPLE LOCK CLOSURE AND 02 ALUMINUM CARABINERS WITH TRIPLE LOCK CLOSURE. |
|
|
MAX LENGTH | 656 ft |
|
|
SEAMS PROTECTOR | YES - SILICONE |
|
|
SHARP EDGE TESTED | 1 |
|
|
MAX OPENING | CARABINER - 23 mm |
|
|
MAX STRENGTH | CARABINER - 40 kN |
|
|
MAX RATED LOAD | 440 lbs |
|
|
HOUSING | ALUMINUM HOUSING |
|
|
WEIGHT PER SIZE EAN/UPC PER SIZE | FS973I-65FT - 6000.00kg - 5605423813104 / 626053660277 |
|
