PROFESSIONAL

FS930E

ORBLOX - FALL ARREST BLOCKS - SHARP EDGE 2.30M

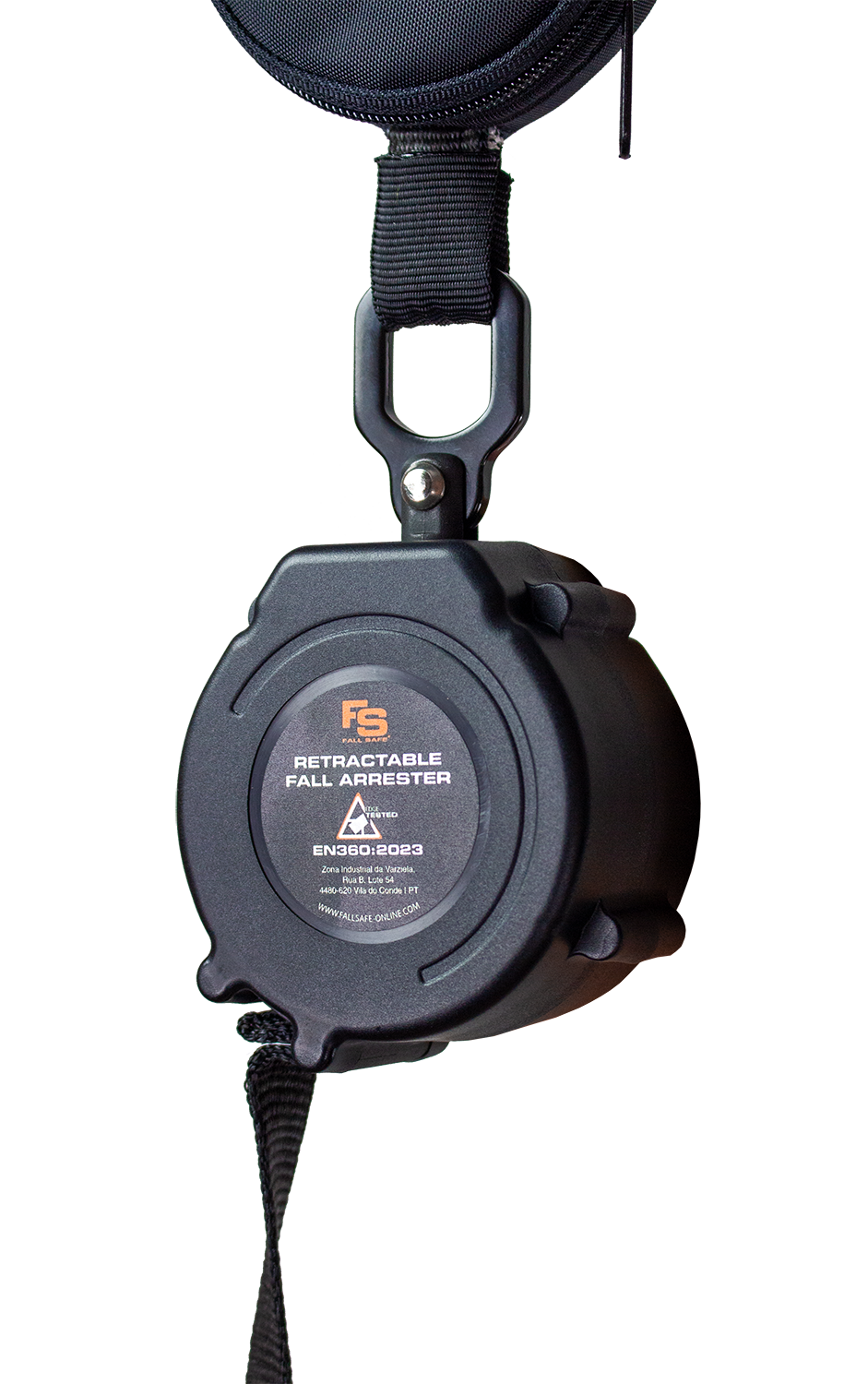

FS930E ORBLOX is a Retractable type Fall Arrester from FALL SAFE® - smaller, lighter, stronger - tested to the latest and safer EN360:2023 standard. Engineered to meet the latest requirements and demands of EN360 standard, this next-generation solution is built to perform in the most critical moments and toughest conditions.

ORBLOX is a 2.3m retractable fall arrester built with ultra-strong 19mm UHMWPE webbing, stainless and carbon steel. Certified to EN360:2023 and tested for sharp edge use, it's designed for one user up to 140 kg. With an integrated energy absorber, fall indicators, and a swivel top anchor for full mobility, it ensures safety without compromising freedom of movement or productivity.

Revised in 2023, EN360 standard redefines height protection with stricter requirements for self-retracting fall arresters. Users benefit from better protection in more diverse and harsh environments. Manufacturers have clearer guidance for testing SRLs under a wider range of conditions, with optional extended scenarios based on product use cases. EN 360:2023 modernizes the standard with real-world use in mind—addressing durability, long-term reliability, and flexibility for varied work environments.

PLATFORMS

SCAFFOLDING

RIGGERS

CONSTRUCTION

WIND TURBINES

TELECOM TOWERS

WOOD POLES

PRODUCT NOT AVAILABLE

The selected product is not available in your region.

TECHNICAL INFORMATION

LIFESPAN 10

MAXIMUM LOAD CE - 140kg

INSPECTION Yearly

TRACEABILITY S/N
RFID
QR Code

STANDARDS CE - EN360:2023

INTRASTAT 84798997

METAL PARTS Aluminium

MATERIAL Ultra durable Nylon casing

WEBBING TYPE 19mm UHMWPE webbing

FALL ARREST INDICATORS Yes

DEVICE Tested: overhead, foot level horizontal, foot level vertical

CONNECTORS 20mm FS twist lock karabiner + 60mm FS large auto lock hook

ENERGY ABSORBER Double wing energy absorber

SHARP EDGE TESTED Yes (Radius 0.5mm steel bar)

MAX RATED LOAD 50-140kg

MAX USERS NO. 1

HOUSING PA66 + Glass filled

CHASSIS Stainless steel, carbon steel

LENGTH 2,3m

CAPACITY Environment: Heat, cold, wet, corrosion | Temperature: -30ºC, +50ºC

WEIGHT PER SIZE EAN/UPC PER SIZE FS930E - 1.61kg - 5605423816600
