PROFESSIONAL
FS240-2
ARC FLASH

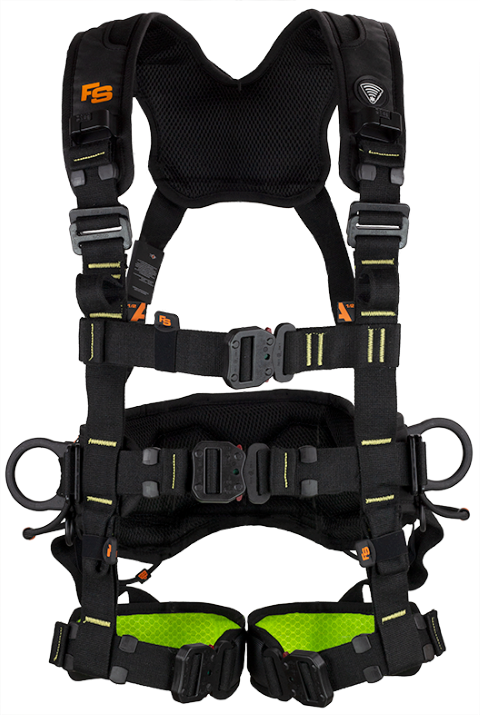

FS240-2 is a full body harness designed for extreme environments, namely jobs where there is risk associated with high voltage electricity. This is achieved by being manufactured with KEVLAR®/NOMEX® heat resistant webbing and seams and dielectric buckles to prevent the passage of electrical current. It is fully adjustable for greater user comfort, having 6 adjustment points. The belt has several points to support tools and it is identified with an RFID tag, S/N tag and QR code for easy tracking and control.
ROPE ACCESS
RIGGERS
TOWER CLIMBING
WIND TURBINES
RESCUE
TELECOM TOWERS
WOOD POLES
TECHNICAL INFORMATION
| LIFESPAN | 8 |
|
|
|
| MAXIMUM LOAD | CE - 140kg |
|
|
|
| INSPECTION | Yearly |
|
|
|
| TRACEABILITY | S/N RFID QR Code |
|
|
|
| STANDARDS | CE - EN361:2002 CE - EN358:1999 CE - EN813:2008 CE - ASTM-F887:2012 |
|
|
|
| INTRASTAT | 63079098 |
|
|
|
| METAL PARTS | Dielectric steel |
|
|
|
| TEXTILE PARTS | Kevlar |
|
|
|
| OTHER COMPONENTS MATERIAL | PA6, silicone |
|
|
|
| WEBBING TYPE | Kevlar® 45mm Nomex® coated |
|
|
|
| D-RINGS | Dielectric ST D-ring at back and sides, front loops |
|
|
|
| ANCHOR POINTS (A) | 4 |
|
|
|
| SHOULDER PADDING | Yes - Croc Smooth Padding 3.0 |
|
|
|
| LUMBAR PADDING | Yes - Croc Smooth Padding 3.0 |
|
|
|
| LEG PADDING | Yes |
|
|
|
| PADDING MATERIAL | TPU, EVA, PA, high visibility mesh and fabric PES |
|
|
|
| SEAT CONNECTION POINT | No |
|
|
|
| TOOL HOLDERS | 5 |
|
|
|
| TOOL HOLDERS MAX LOAD | 15kg |
|
|
|
| ADJUSTMENT POINTS | 6 |
|
|
|
| BUCKLES | 3 Dielectric ST quick connect buckles; 2 dielectric ST 3-bar buckles |
|
|
|
| FALL ARREST INDICATORS | Yes |
|
|
|
| LANYARD KEEPERS | Yes |
|
|
|
| COMPONENTS | Safety Technology - FALL SAFE INSPECTOR® |
|
|
|
| WEIGHT PER SIZE EAN/UPC PER SIZE | FS240-2-S/M - 2.90kg - 5605423571301 FS240-2-L/XL - 3.10kg - 5605423571318 FS240-2-XXL - 3.30kg - 5605423571325 |
|
|
|
