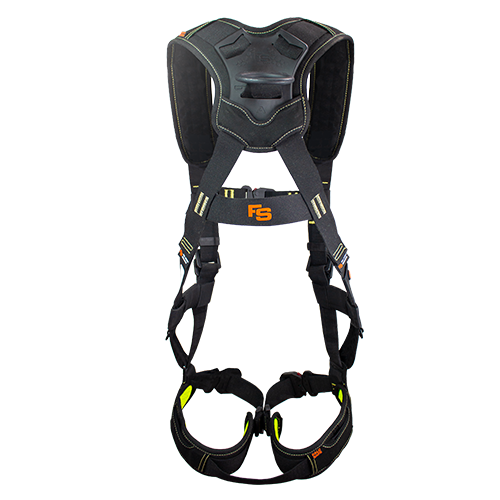

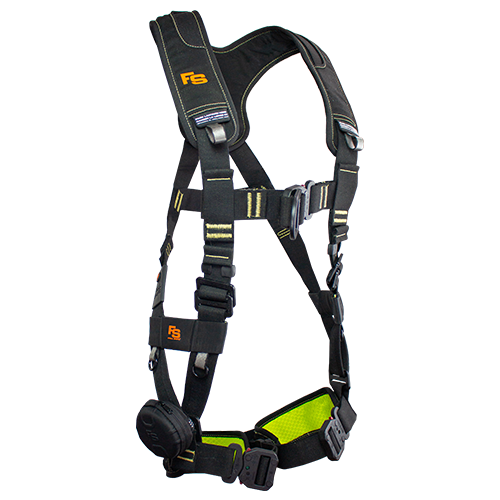

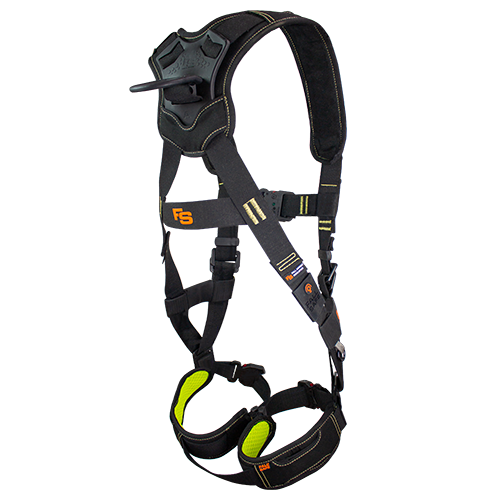

The FS242-2ICD - HARN FLEX AF COMFORT 2D full-body harness was developed to offer maximum safety and comfort in extreme environments, especially in high-voltage electrical hazard situations. Made with KEVLAR®/NOMEX® webbing and stitching—materials highly resistant to heat—and equipped with dielectric buckles that prevent electrical conduction, this harness provides effective protection against electric shocks.
Extremely lightweight, its ergonomic design facilitates daily use and is fully adjustable to perfectly fit the user's body. It features padding on the back and legs, as well as silicone side protection that offers high impact resistance. The anchoring system consists of an aluminum D-ring located on the back and on the chest. On the sides, it includes multiple tool attachment points, ensuring practicality during work.
For efficient tracking and inventory control, the harness includes an RFID tag, a serial number (S/N) label, and a QR code. With a modern and functional look, this equipment combines robustness, safety, and freedom of movement, making it an ideal choice for professionals working under severe conditions who do not compromise on comfort.
OFFSHORE
CONSTRUCTION
LIFESPAN | 10 Years |
|
|
MAXIMUM LOAD | CSA - 310lbs OSHA - 310lbs ANSI - 310lbs |
|
|
INSPECTION | Yearly |
|
|
TRACEABILITY | S/N RFID QR Code |
|
|
STANDARDS | CSA - Z259.10-18 OSHA - 1926.502 OSHA - 1910.140 ANSI - Z359.11-2021 |
|
|
INTRASTAT | 63079098 |
|
METAL PARTS | DIELECTRICS 9kV - STEEL ALLOY |
|
|
TEXTILE PARTS | KEVLAR® WEBBING COATED WITH NOMEX® |
|
|
OTHER COMPONENTS MATERIAL | SILICONE, POLYESTER (PES), AND POLYAMIDE (PA) |
|
|
WEBBING TYPE | KEVLAR® TAPE COATED WITH NOMEX® - 45 mm |
|
|
D-RINGS | 2 DIELECTRIC |
|
|
ANCHOR POINTS (A) | 2 |
|
|
SHOULDER PADDING | YES |
|
|
LEG PADDING | YES |
|
|
PADDING MATERIAL | FLAME-RETARDANT FABRIC, EVA, AND POLYESTER (PES) |
|
|
SEAT CONNECTION POINT | NO |
|
|
TOOL HOLDERS | 4 |
|
|
TOOL HOLDERS MAX LOAD | 22 lbs |
|
|
ADJUSTMENT POINTS | 4 |
|
|
BUCKLES | DIELECTRICS 9kV - STEEL ALLOY |
|
|
FALL ARREST INDICATORS | YES |
|
|
LANYARD KEEPERS | YES |
|
|
MAX RATED LOAD | 310 lbs |
|
|
WEIGHT PER SIZE EAN/UPC PER SIZE | FS242-2ICD-S/M - 2.00kg - 5605423817157 / 626053660116 FS242-2ICD-XXL - 3.00kg - 5605423817171 / 626057660709 FS242-2ICD-L/XL - 2.50kg - 5605423817164 / 626056660694 |
|
TDS_FS242-2ICD-S/M
Download
|
|
|
